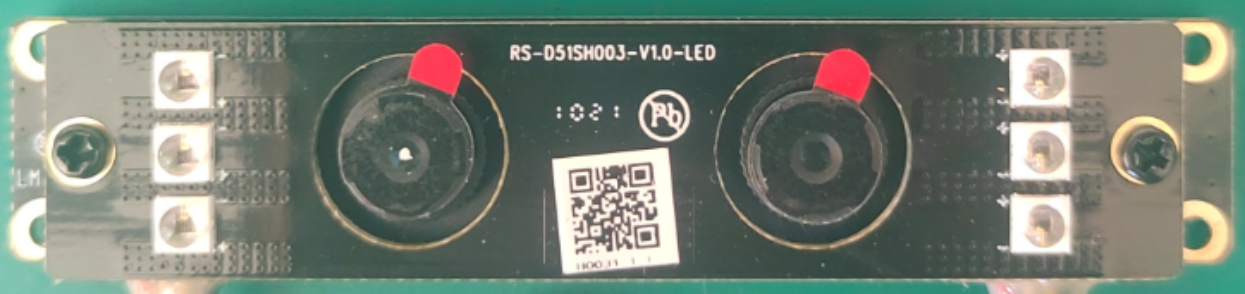

双目摄像头模组

ModuleNo.

TR-CC200

Module Size

80mm×16mm×10.6mm±0.3mm

Temperature (Operation)

-20°Cto 70°C

Temperature (Stable Image)

0°Cto 50°C

Assemblytechnique

SMT (RoHS)

Focus

Fix

Objectdistance

40CM-150CM

PCBprinting ink

black

interface

USB 2.0

Power

USB bus power5V

power dissipation

RGB:65mA±5mA@5V IR:320mA±5mA@5V(带灯)

Operating systemrequest

Windows 2000/XP/7/8/8.1/10,Linux，Android

Package

Anti-electrostatic tray

Certifications

SensorType

1/2.7

1/3

ActiveArraySize

1920H×1080V

1280Hx960V

Sensitivity@530nm

5.8V/ Lux-sec

6.5V/ Lux-sec

PixelSize

3.0µmx 3.0µm

3.75µmx 3.75µm

MaximumImage TransferRate

30fps (1920*1080)

45fps（1280*960）

S/NRatio

41 dB

37.2dB

Dynamic Range

UP to 115dB

82dB

Package

CSP

CSP

Lens Type

Lens Construction

650nm

850nm（带通）

F/No

2.0±5%

2.0±5%

EFL

4.3mm±5%

4.3mm±5%

BFL(Optical)

0.95mm±5%

0.95mm±5%

FOV

73°±5%

73°±5%

HORIZONTAL

65°±5%

65°±5%

VERTICAL

40°±5%

40°±5%

TVDistortion

<0.5%

<1.5%

Relative illuminance

≧45%

≧45%

DSP Type

Rs6088

Rs3015

AGC/AEC/Whiterbalance

Auto

Auto

OutputFormats

RGB(YUV/Mjpeg)

IR(YUV/Mjpeg)

1920*1080

1280*720

800*600

640*480

1280*720

800*600

640*480

FixedPattern Noise

<0.03%ofVPEAK-TO-PEAK

Package

QFN-32pin

QFN-40pin
